PRODUCTS

STEEL-PRO® SERIESLow RPM Dry Cut SawCircular Saw

TENRYU's steel cutting carbide tipped saw blades for industrial performance

Steel-ProCut ferrous metals (mild steel) faster, cleaner and easier. Save time, money, the environment, and your respiratory health.

TENRYU's complete series of steel cutting saw blades called "Steel-Pro®" makes light work out of all kinds of mild steel: steel studs, steel sheet, steel pipe, channel, threaded rod and much, much more.

Specially formulated C-6 carbide grade, combined with our unique tip design, resists breakage on impact and lasts longer- much longer than standard carbides or abrasive discs. Special tooth geometry with "inserted" tooth design greatly improves security of the tip, efficiency and durability.

Abrasive discs throw sparks and lots of dust including unhealthful fiberglass. You shouldn't be breathing it in! Steel-Pro® blades reduce spark production and eliminate abrasive wheel dust.

Abrasive discs wear quickly, requiring frequent blade changes. Steel-Pro® blades allow you to keep working; eliminating down time for frequent blade changes. In addition, Steel-Pro® cuts 5 to 10 times faster than abrasives. Typically, one Steel-Pro® blade will outlast somewhere between 15 to 30 abrasive blades. Think of all that non-productive "down time".

Abrasive discs leave a sharp burr at the cutting edge that must be removed later. Steel-Pro® blades cut clean; eliminating this extremely time-consuming after-cut process. "Time is money". Steel-Pro® saves BOTH!

EACH BLADE FEATURES:
  • Rugged plates and specially formulated carbide tips with a special tooth grind for fast, clean cuts.
  • High quality cuts without the clouds of dust and scorch marks associated with friction blades.
  • Cool cuts that leave the work piece edge free of burrs.
  • Reduced cost-per-cut and maximized performance for the operator as a result of fewer blade changes.
Please note all safety instructions before use and adhere to instructions for maximum RPM speeds.
STEEL-PRO® SERIES
MODEL # DIA. TEETH ARBOR GRIND KERF RAKE APPLICATION
PRF-15238 6" 38 1/2" MTCG .079" 0 For cordless or corded saws.
PRF-16048 6-1/4" 48 5/8" MTCG .079" 0 For cordless or corded saws.
PRF-18538BW 7-1/4" 38 5/8"KO ATB .079" 0 Our Steel-Pro for cutting ferrous metal up to 1/4" thick.
PRF-18538BW2 7-1/4" 38 20mm MTCG .079" 0 Mild steel up to 1/4" thick. Fits Jancy, Evolution® Saw.
PRF-18548BW 7-1/4" 48 5/8"KO ATB .079" 0 Our most popular Steel-Pro. Cuts thick (up to 1/8") and thin.
PRF-18548BW2 7-1/4" 48 20mm ATB .079" 0 Mild steel up to 1/8" thick. Fits Jancy, Evolution® Saw.
PRF-18556CB 7-1/4" 56 5/8"KO ATAF .071" -10 Additional carbide tip for smoother cutting of thin materials.
PRF-18570CBN 7-1/4" 70 5/8"KO ATB .069" -10 For very thin steel. (Steel sheet, corrugated steel sheet etc.)
PRF-18570BW2 7-1/4" 70 20mm ATB .069" -10 For very thin steel. (Steel sheet, corrugated steel sheet etc c)
PRF-20348CBN 8" 48 5/8" ATB .087" 0 For ferrous metal cutting. General application.
PRF-21048BW 8-1/4" 48 5/8"KO MTCG .087" 0 The 8-1/4" Steel-Pro for ferrous metal cutting with circular saws.
PRF-23048CBN 9" 48 1" ATB .087" 0 For up to 1/8" thick steel on the Evolution Saw.
PRF-25550D 10" 50 1"/ 5/8" TCG .098" 0 For 10" circular saws and low RPM saws for ferrous metal.
PRF-30560D* 12" 60 1" TCG .098" 0 For cutting mild steel on low RPM dry cut saws.
PRF-35572D* 14" 72 1" TCG .094" 0 For use on dry-cut low RPM saws for cutting mild steel.
PRF-40580D* 16" 80 1" TCG .102" 0 For use on low RPM saws for cutting mild steel.

*These blades are for use on low RPM "dry-cut" chop saws only.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requir4ements and PROPERLY FUNCTIONING UPPER and LOWER BLADE GUARDS.



STEEL-PRO® STABILIZER



TENRYU establishes an even higher standard of steel-cutting excellence! TENRYU has raised the bar once again in the portable saw, steel-cutting industry!

StabilizerVirtually all test monitors recognized better longevity of the blade. This new, "STABILIZER" technology stabilizes the blade in the cut with much less vibration during operation.
Cleaner cuts, longer life and more a comfortable feeling are great benefits of "STABILIZER", making it more "user-friendly".

TENRYU blades do not require blade plate stabilizes, as is commonly known in the market.

In fact, the patent pending design technology of our new "STABILIZER" blade eliminates any need for a blade stabilizer and produced an even more effective job!



EACH BLADE FEATURES:


Newly invented "STABILIZER" plate (Pat. Pend.) improves the cutting performance

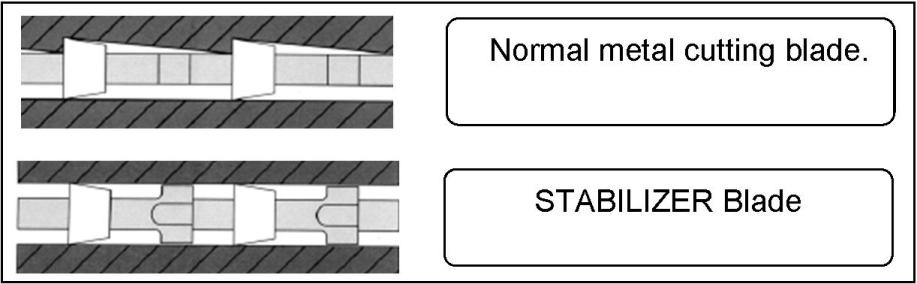

  • Stabilizer DiagramBetter straightness of cut

  • Cleaner cuts

  • Longer cutting life

  • Reduced burring

  • Reduced scattering of steel debris

  • Less Vibration

Please note all safety instructions before use and adhere to instructions for maximum RPM speeds.

STEEL-PRO® STABILIZER

MODEL # DIA. TEETH ARBOR GRIND KERF RAKE APPLICATION
PRF-18536BWK 7-1/4" 36 5/8"KO MTCG .079" 0 Mild steel. 1/8" to 1/4" thickness.
PRF-18536BWK2 7-1/4" 36 20mm MTCG .079" 0 Mild steel. 1/8" to 1/4" thickness. Fits 7, 7-1/4" and 7-1/2" Saws.
PRF-18548BWK 7-1/4" 48 5/8"KO MTCG .079" 0 Mild steel. 1/8" to 1/4" thickness.
PRF-18548BWK2 7-1/4" 48 20mm MTCG .079" 0 Mild steel. 1/8" to 1/4" thickness. Fits 7, 7-1/4" and 7-1/2" Saws.
PRF-20348BWK 8" 48 5/8"KO MTCG .087" 0 Mild steel. Up to 1/8" thickness.
PRF-21048BWK 8-1/4" 48 5/8"KO MTCG .079" 0 Mild steel. Up to 1/8" thickness.
PRF-23048BWK 9" 48 1" MTCG .087" 0 Mild steel. Up to 1/8" thickness.
PRF-30560DK 12" 60 1" TCG .098 0 For 12" Dry cutter (Low RPM).
PRF-35572DK 14" 72 1" TCG .098" 0 For 14" Dry cutter (Low RPM).
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requir4ements and PROPERLY FUNCTIONING UPPER and LOWER BLADE GUARDS.


STEEL-PRO® SELECT

The Steel-Pro® Select is TENRYU's 2nd generation of mild steel cutting carbide tipped saw blades cQuieter!

These blades are designed to cut mild steel as STEEL-PRO® blades do, but cut quieter than STEEL-PRO® and last longer as well.

EACH BLADE FEATURES:
  • Exclusive two-ply plate design for self dampening and low noise operation.
  • Individually hammer-tensioned steel plates for true run.
  • Tough C-6 carbide for impact resistance and long cutting life.
  • Unique tip design and geometry for smoother and easier cuts.
  • Inserted teeth with chip limiting steel support for added durability and safety.
Steel-Pro® Select blades, when used for the proper application, will save lots of time and can outlast abrasive discs up to 30 to 1.

Please note all safety instructions before use and adhere to instructions for maximum rpm speeds.

STEEL-PRO® SELECT SERIES
MODEL # DIA. TEETH ARBOR GRIND KERF RAKE APPLICATION
PRF-18538DS 7-1/4" 38 5/8"KO TCG .079" 0 Steel-Pro Select for ferrous metal up to 1/4" thick.
PRF-18548DS 7-1/4" 48 5/8"KO TCG .079" 0 Steel-Pro Select for ferrous metal up to 1/8" thick.
PRF-25550DS 10" 50 1"/ 5/8" TCG .091" 0 Steel- Pro Select for quiet cuts in mild steel.
PRF-30560DS* 12" 60 1" TCG .094" 0 Steel-Pro Select for low vibration cuts and less noise in mild steel.
PRF-30580BWS* 12" 80 1" MTCG .091" -5 Steel-Pro Select for low vibration cuts and less noise in mild steel (more teeth for cutting thin stock).
PRF-35572DS* 14" 72 1" TCG .094" 0 Steel-Pro Select for low vibration cuts and less noise in mild steel.
PRF-35590BWS* 14" 90 1" MTCG .091" -5 Steel-Pro Select for low vibration cuts and less noise in mild steel (more teeth for cutting thin stock).
*These blades are for use on low RPM "dry-cut" chop saws only.

ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requir4ements and PROPERLY FUNCTIONING UPPER and LOWER BLADE GUARDS.
